Donor-level disease prediction¶
m3 can predict a donor's disease status from their cells, in a leave-one-batch-out setting: we hold out one batch (B3), hide its donors' disease labels during training, and predict them at the end. m3_train(...) fits the integration model and the donor predictor in one call; m3_predict_donors() then returns per-donor class probabilities.
1. Load the demo dataset¶
library(m3)
set.seed(0)
data <- m3_demo()
data
#> m3_dataset(n_cells=30534, batches=[B1, B2, B3], modalities=[rna:1000, adt:192])
2. Build + train the model with a held-out batch¶
On top of the columns from the representation-learning tutorial, donor prediction needs a few more:
target_condition, the condition to predict (herecond_group, i.e. disease).donor_key, the column identifying each donor, so cells are grouped per donor.held_out, the batch(es) to hold back; these donors'target_conditionlabels are hidden during training and predicted at the end.
The donor predictor summarises each donor as a cell-type-balanced mean of the latent embedding, then removes batch effects from it by adversarial domain adaptation: a corrector reshapes the profile while a batch discriminator tries to identify the batch from it, and the corrector is trained to predict disease while preventing the discriminator from succeeding. The donor_predictor settings:
patient_w— weight of the donor objective relative to the cell-level VAE loss.adv_max— the maximum strength of batch removal.adv_warmup— number of epochs over which batch-removal strength ramps from 0 toadv_max.n_disc— discriminator updates per corrector update.glr,n_epochs— the corrector's learning rate and number of epochs.
m3_reference_vocab(model) shows the label set the model learned to predict (the held-out donors' labels never enter it).
#To save time, users can set max_epochs to 100 for test.
model <- m3_train(
data,
condition_keys = c("cond_group", "Age_interval"),
target_condition = "cond_group",
celltype_key = "mergedcelltype",
batch_key = "batch",
donor_key = "sample_id",
held_out = "B3",
embedding_dim = 30L,
max_epochs = 500L,
donor_predictor = list(glr = 3e-3, n_epochs = 120L, adv_max = 10L,
adv_warmup = 7L, n_disc = 21L, patient_w = 10L),
seed = 0L
)
cat("reference vocab (query labels never enter it):",
paste(m3_reference_vocab(model)$cond_group, collapse = ", "), "\n")
#> reference vocab (query labels never enter it): HC, Severe
3. Predict the held-out donors¶
m3_predict_donors(model) returns one row per held-out donor: the predicted label and the probability of each class.
preds <- m3_predict_donors(model)
cat("query donors:", nrow(preds), "\n")
#> query donors: 23
print(preds)
#> sample_id is_reference predicted_label prob_HC prob_Severe
#> 1 B3_HGR0000051_T0 FALSE Severe 6.211422e-07 0.9999994040
#> 2 B3_HGR0000051_T1 FALSE Severe 3.821796e-05 0.9999617338
#> 3 B3_HGR0000051_T2 FALSE Severe 1.434713e-04 0.9998564720
#> 4 B3_HGR0000051_T3 FALSE Severe 8.502320e-05 0.9999150038
#> 5 B3_HGR0000101_T0 FALSE Severe 1.689571e-04 0.9998309612
#> 6 B3_HGR0000101_T1 FALSE Severe 1.553886e-06 0.9999984503
#> 7 B3_HGR0000101_T3 FALSE Severe 4.099387e-05 0.9999589920
#> 8 B3_HGR0000102_T0 FALSE Severe 5.886243e-06 0.9999941587
#> 9 B3_HGR0000102_T1 FALSE Severe 1.414257e-06 0.9999985695
#> 10 B3_HGR0000134_T0 FALSE Severe 2.599255e-05 0.9999740124
#> 11 B3_HGR0000134_T1 FALSE Severe 3.862466e-05 0.9999613762
#> 12 B3_HGR0000135_T0 FALSE Severe 3.230921e-06 0.9999967813
#> 13 B3_HGR0000135_T1 FALSE Severe 2.058625e-07 0.9999997616
#> 14 B3_HGR0000142_T0 FALSE Severe 2.676351e-05 0.9999731779
#> 15 B3_HGR0000392_T0 FALSE Severe 1.773454e-06 0.9999982119
#> 16 B3_HGR0000392_T3 FALSE Severe 1.556560e-05 0.9999843836
#> 17 B3_HGR0000429_T1 FALSE Severe 1.968242e-05 0.9999803305
#> 18 B3_HGR0000429_T2 FALSE Severe 7.869442e-05 0.9999213219
#> 19 B3_HGR0000430_T1 FALSE Severe 3.379085e-04 0.9996620417
#> 20 B3_SHD1_HC FALSE HC 9.306676e-01 0.0693323463
#> 21 B3_SHD3_HC FALSE HC 9.538549e-01 0.0461451486
#> 22 B3_SHD5_HC FALSE HC 9.995824e-01 0.0004175995
#> 23 B3_SHD6_HC FALSE HC 9.905715e-01 0.0094285561
4. Evaluate against the held-out truth¶
The held-out donors' real cond_group lives in the metadata (never shown to the model). We join it back to score accuracy.
obs <- m3_dataset_obs(data)
truth <- unique(obs[, c("sample_id", "cond_group")])
truth <- stats::setNames(as.character(truth$cond_group), as.character(truth$sample_id))
preds$true_label <- truth[as.character(preds$sample_id)]
acc <- mean(preds$predicted_label == preds$true_label)
cat(sprintf("held-out accuracy = %.3f\n", acc))
#> held-out accuracy = 1.000
5. Patient-level embedding¶

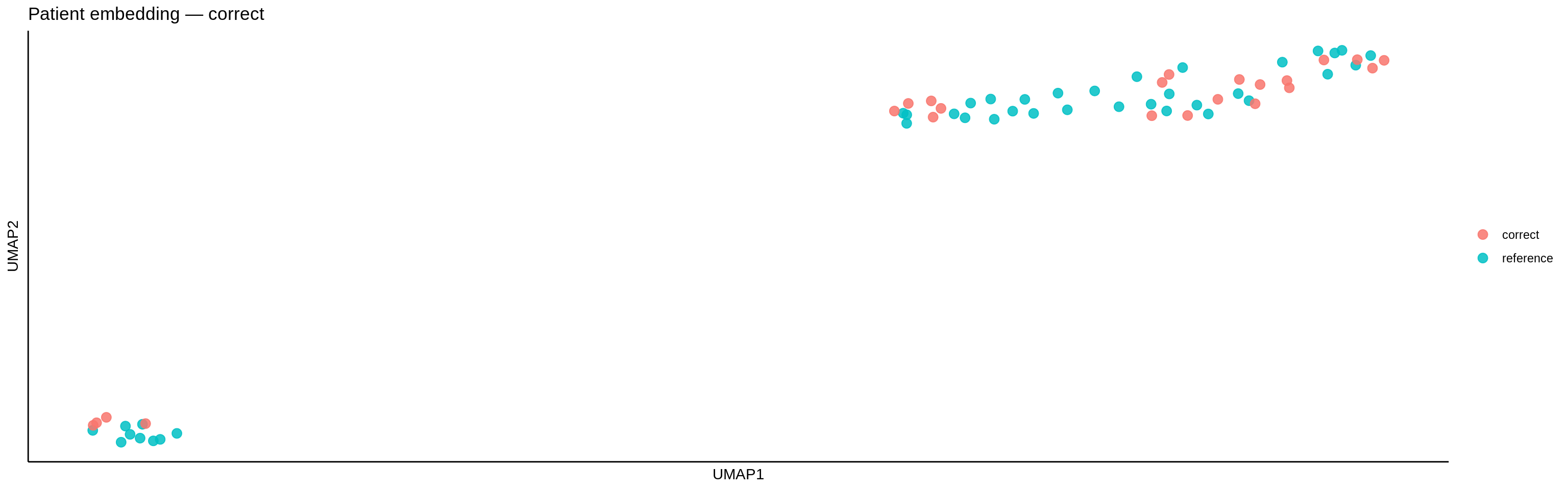

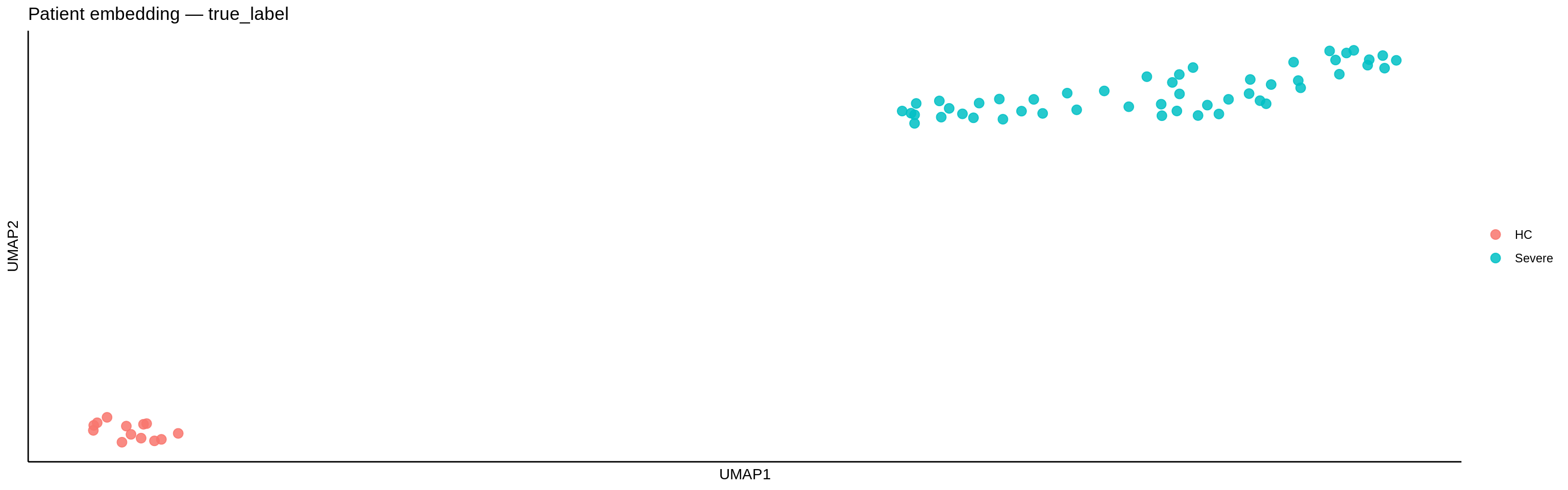

m3_donor_embedding() returns one vector per donor, the donor-level representation the model actually classifies. We UMAP it and colour by reference/query, true label, and whether the held-out prediction was correct.
demb <- m3_donor_embedding(model)
info <- m3_predict_donors(model, include_reference = TRUE)
info <- info[match(demb$sample_id, info$sample_id), ]
info$true_label <- truth[as.character(demb$sample_id)]
info$set <- ifelse(info$is_reference, "reference", "query")
info$correct <- ifelse(info$is_reference, "reference",
ifelse(info$predicted_label == info$true_label, "correct", "wrong"))
X <- as.matrix(demb[, grep("^m3_", colnames(demb))])
xy <- m3_umap(X, method = "umap", n_neighbors = 15L, random_state = 0L,
device = model$device)
pdf <- data.frame(UMAP1 = xy[, 1], UMAP2 = xy[, 2],
set = factor(info$set), true_label = factor(info$true_label),
correct = factor(info$correct))
pl <- function(colour, title) {
ggplot(pdf, aes(UMAP1, UMAP2, colour = .data[[colour]])) +
geom_point(size = 3, alpha = 0.85) + theme_classic() +
theme(axis.text = element_blank(), axis.ticks = element_blank()) +
labs(title = title, colour = NULL)
}

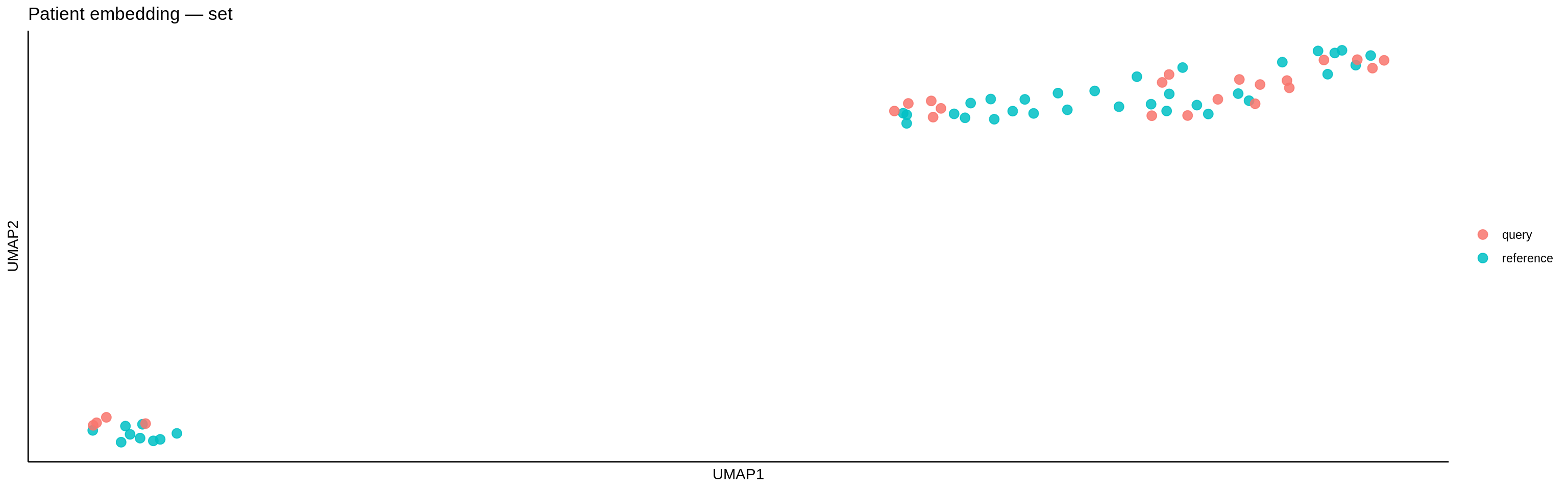

print(pl("set", "Patient embedding — set"))
Done. Leave-one-batch-out donor prediction, evaluated against the held-out truth, with a patient-level embedding.
